Key Optical Considerations of Use 100G ER4 Designing 40 km Links

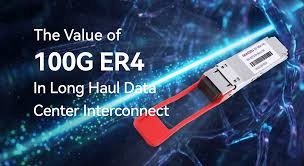

As data traffic continues to grow, many enterprises, service providers, and data center operators require reliable long-distance connections between network nodes. For links that extend beyond the typical 10 km reach of standard optics, the 100GBASE-ER4 optical module has become a practical solution. Designed to support transmission distances of up to 40 km over single-mode fiber, 100G ER4 modules are widely used in metro networks, inter-building connectivity, and data center interconnection (DCI). However, deploying a stable 40 km optical link requires careful planning and an understanding of several key optical design considerations.

OS2 Single-Mode Fiber Requirements

The foundation of any long-distance optical link is the fiber infrastructure. For 100G ER4 deployments, OS2 Single‑Mode Fiber is the standard choice. OS2 fiber is specifically designed for long-haul transmission and offers low attenuation, typically around 0.4 dB/km at 1310 nm. This low-loss characteristic makes it suitable for extended distances such as 40 km links.

Compared with multimode fiber, OS2 single-mode fiber provides a much smaller core diameter, allowing only one propagation mode of light. This significantly reduces modal dispersion and helps maintain signal integrity over long distances. In most deployments, OS2 fiber is used with LC duplex connectors and supports the four-lane wavelength transmission employed by ER4 modules.

Ensuring that the fiber plant meets OS2 specifications is critical. Older fiber infrastructure with higher attenuation or excessive splicing may reduce the achievable transmission distance or degrade signal quality.

Understanding Link Budget Calculation

One of the most important steps in designing a 40 km optical link is calculating the optical link budget. The link budget determines whether the optical signal transmitted by the module can still be reliably detected at the receiving end after accounting for all losses along the path.

A typical 100GBASE-ER4 module provides a link budget of approximately 20 dB. This value represents the difference between the transmitter output power and the receiver sensitivity.

To estimate whether a link will operate reliably, network engineers must calculate the total optical loss in the system. This usually includes fiber attenuation, connector losses, and potential splice losses. The general calculation is straightforward:

Total Link Loss = Fiber Loss + Connector Loss + Splice Loss + Safety Margin

For example, a 40 km OS2 fiber link with attenuation of 0.4 dB/km results in approximately 16 dB of fiber loss alone. When connectors and other components are added, the total loss approaches the limit of the ER4 link budget. This is why careful planning and component selection are essential.

Fiber Attenuation and Connector Loss

Fiber attenuation is the primary contributor to signal loss in long-distance optical links. At 1310 nm wavelengths commonly used by ER4 modules, attenuation in OS2 fiber typically ranges from 0.35 dB/km to 0.4 dB/km. Over a 40 km span, this translates into 14–16 dB of loss.

In addition to fiber attenuation, connector loss must also be considered. Each LC connector pair generally introduces about 0.3–0.5 dB of insertion loss. In real deployments, multiple patch panels or cross-connect points may exist, increasing the cumulative loss.

Splice loss is another factor, although it is usually smaller. Fusion splicing typically adds around 0.05–0.1 dB per splice, but large numbers of splices can still impact the overall budget.

Because these losses accumulate quickly in long links, many network designers include a safety margin of 1–2 dB to account for aging, fiber bending, or environmental changes.

Practical Deployment Considerations

When designing 40 km connections with 100GBASE-ER4 modules, engineers should also consider the overall network topology and hardware compatibility. Ensuring that switches, routers, and optical modules support ER4 optics is essential for reliable operation.

In addition, maintaining clean connectors and high-quality fiber management can significantly reduce unexpected losses. Poor connector hygiene or excessive bending in fiber cables can degrade signal performance and shorten the achievable transmission distance.

Conclusion

Designing a reliable 40 km optical link requires more than simply selecting a long-reach optical module. By carefully considering fiber type, performing accurate link budget calculations, and accounting for attenuation and connector losses, network engineers can ensure stable and efficient long-distance connectivity. With proper planning and high-quality OS2 Single‑Mode Fiber infrastructure, 100GBASE-ER4 modules remain a powerful solution for extended-reach 100G networking deployments.
